In order to increase the service life of coater blades and creping doctors, their blade tips are coated with a wear-protection layer. Ceramic layers and metal-ceramic composites (cermets) are used for this.
Different layer and wear characteristics, such as hardness and material removal, are required depending on the customer’s specific application. Accordingly, our CERADIA product range offers a broad spectrum of possible coating variants so that our application technicians are able to develop an ideally-tailored product for each individual customer.

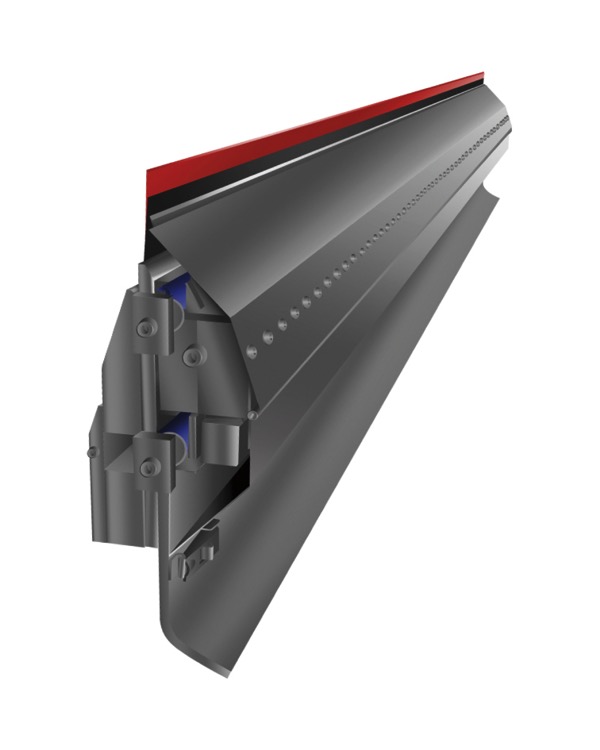

Special blade construction against vibrations
|PRIMARY MATERIAL||Carbon Steel|
|COATING||Ceramic / Carbide|
|DAMPING MATERIAL||Carbon fibre|
|THICKNESS mm (inch)||WIDTH mm (inch)|
|Crepingblade: 0.6 (0.024)||90 (3.55), 100 (4), 110 (4.33), 116 (4.57), 120 (4.75)|
|Damping material: 1.5 (0.059)|
|Continuous length to individual specification|
|Hardened, tempered and straight adjusted|
|Individual bevel according customer requirement|
|Straightness tolerance max. variation 0.2 mm over 1000 mm|
