Damping - precisely where it makes a difference! The innovation for the tissue industry. In addition to the GALENO creping doctor system, we also offer service and maintenance of creping doctors.
GALENO Creping Doctor System
The creping doctor system for tissue-specialists by CLOUTH SPRENGER
| ADVANTAGES | |
|---|---|
|
No distortion of the doctor beam caused by temperature-related deflection The temperature of the doctor beam is equalised, so avoiding any deflection due to temperature differences in different areas of the tissue machine. |
|
|

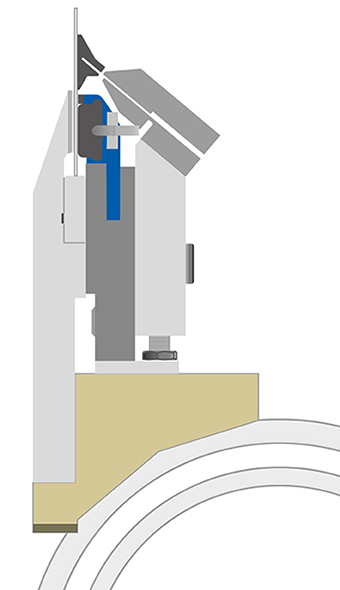

Blade damping in the holder By clamping the creping blade in the holder using an innovative pneumatically pre-stressed hose, effective vibration damping is achieved where it matters most: directly at the blade. |
|
|
Damping the blade close to the Yankee The vulkollan ‘shoe’ has maximum contact with the creping blade, damping vibration at the Yankee. |
|
|
Profiling the doctor blade The backing blade is held in position by the individual profiling fingers and can be individually adjusted over the entire width of the doctor, enabling the creping blade to be perfectly profiled to the Yankee surface. |
| MATERIAL | |
|---|---|
|
The mounting beam of the creping holder consists of a double pipe |
|
|
Vulkollan profile with metal inlay as damping-element at the Yankee |
|
| Pneumatically pre-stressed hose as damping-element in the holder | |
| FURTHER INFORMATION | |
|---|---|
| GALENO Creping Doctor System | |
