Thermoplastics are plastics than can be deformed above a defined temperature. They can be further subdivided on the basis of their thermal, chemical or mechanical characteristics.
In the thermoplastics field we offer doctor blades with and without fabric inlay. The fabric inlay provides improved characteristics such as higher strength combined with better cleaning effects. Nevertheless, the cleaning effect on the roll and cylinder surface remains gentle.
Our experienced service technicians can assist you with the selection of the right blades for your particular application.

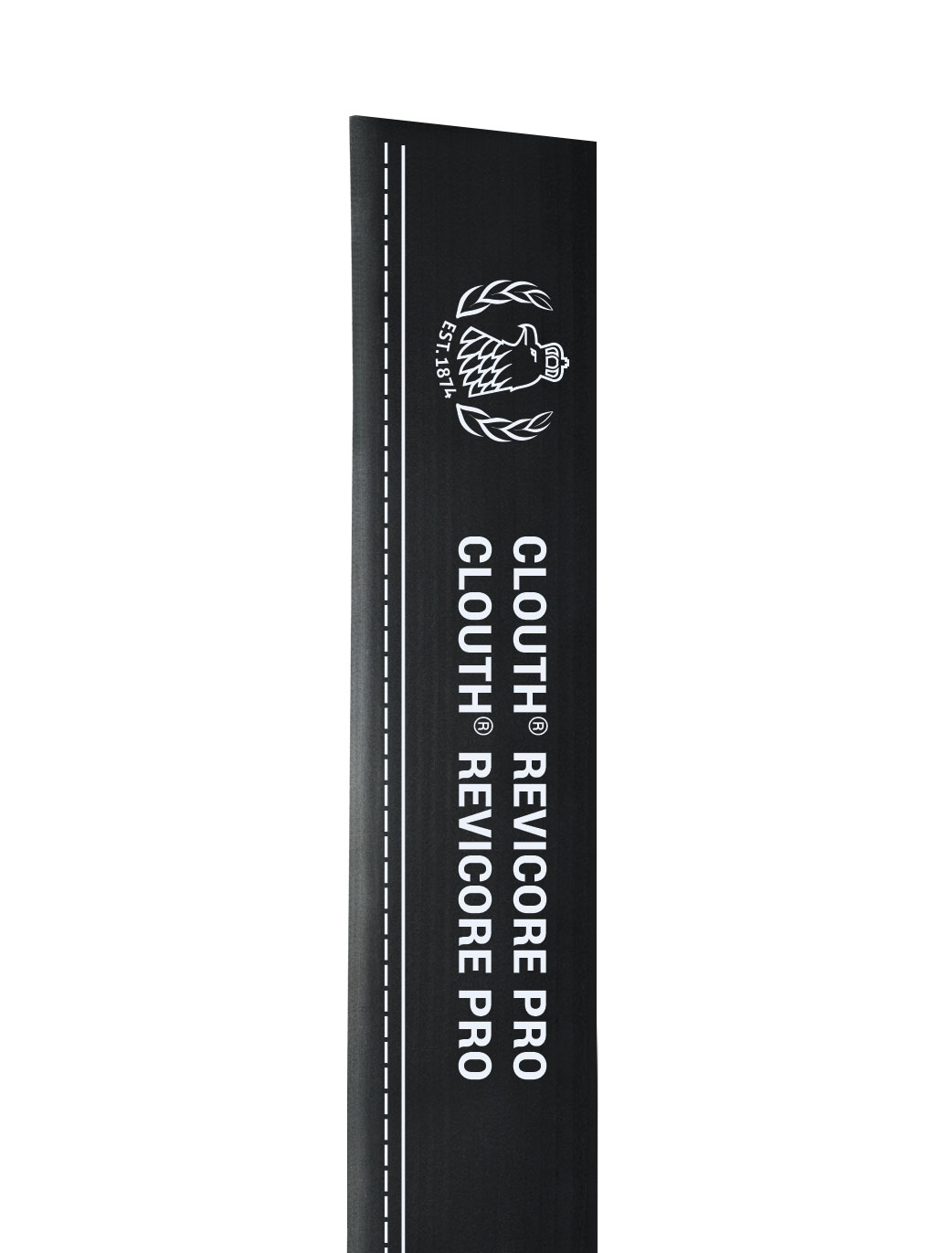

CLOUTH® REVICORE PRO
Doctor Blade made from high-quality recycled carbon fibre composite material
| MATERIAL | |
|---|---|
| High-quality recycled carbon fibre composite material |
| ADVANTAGES | |
|---|---|
|
MATERIAL COLOR |
black |
|
FLEXURAL STRENGTH |
max. 175 N/mm² |
|
CONTINUOUS SERVICE TEMPERATURE |
180°C |
|
WATER ABSORPTION |
< 0.5% |
|
SURFACE ROUGHNESS |
< 3 µm |
|
CHEMICAL RESISTANCE |
Common alkaline solutions, acids, oxidizing agents, solvents, oils, greases, water and steam |
| ABRASION RESISTANCE | Uniform due to good adaptation to the roll surface and favorable sliding properties |
| STANDARD DIMENSIONS | |
|---|---|
|
THICKNESS mm (inch) |
WIDTH mm (inch) |
| 1.9 (0.074) | 75 (3) |
| KEY FEATURES | |
|---|---|
|
Single bevel 25° |
|
|
Continuous, customized length |
|
|
Wear indicator |
|
|
Ready for installation with matching rivet system for common holder systems |
|
| Individual geometries are possible within the scope of customer-specific solutions |
| APPLICATION | |
|---|---|
|
Designed for continuous and process-stable cleanliness during operation. |
|
| For initial cleaning or in cases of heavy deposits, the short-term use of a special cleaning blade is recommended. | |
