Thermoplastics are plastics than can be deformed above a defined temperature. They can be further subdivided on the basis of their thermal, chemical or mechanical characteristics.
In the thermoplastics field we offer doctor blades with and without fabric inlay. The fabric inlay provides improved characteristics such as higher strength combined with better cleaning effects. Nevertheless, the cleaning effect on the roll and cylinder surface remains gentle.
Our experienced service technicians can assist you with the selection of the right blades for your particular application.

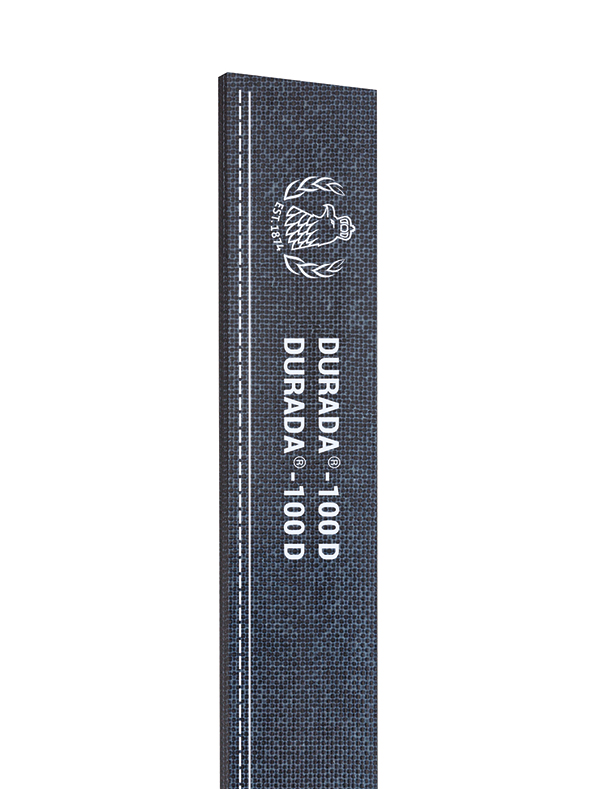

DURADA®-100D
Doctor Blade from advanced polymer material
| MATERIAL | |
|---|---|
|
Carbon fibre fabric with thermoplastic matrix Very low coefficient of friction, extremely wear-resistant |
| ADVANTAGES | |
|---|---|
|
MATERIAL COLOUR |
black/grey |
|
LOGO COLOUR |
white |
|
BENDING STRENGTH |
up to 450 N/mm² |
|
TEMPERATURE RESISTANCE IN CONTINUOUS USE |
180°C |
|
CHEMICAL RESISTANCE |
very good |
| WATER ABSORPTION | none |
| STANDARD DIMENSIONS* | |
|---|---|
|
THICKNESS mm (inch) |
WIDTH mm (inch) |
|
1.5 (0.060) |
75 (3) |
| 1.9 (0.075) | 75 (3) |
| * Other widths and thicknesses available on request | |
| KEY FEATURES | |
|---|---|
|
Continuous length to individual specification |
|
|
Single or double bevel |
|
|
Bevel from 15° – 90° |
|
|
Rebate or groove |
|
| Printed wear indicators |
| RIVETING | |
|---|---|
| Ready to use for all standard holder systems with appropriate rivets. | |
DURADA®-100D
