CLOUTH®-SEAL
RELIABLY SEALED!

At the moment the sheet is released from the drying cylinder, it is exposed to particular stresses. The result can often be web breaks and unplanned, costly machine downtimes.

With the help of technical air installations, which are ideally equipped with CLOUTH®-SEAL sealing strips, a targeted vacuum is generated and the sheet is supported at this critical moment.

CLOUTH®-SEAL provides more process reliability, maximum system availability and increased machine efficiency.

Advantages

  • No damage to the dryer fabrics:
    Non-abrasive and slippery silicone protects the dryer fabrics.
  • Increased efficiency and lower energy consumption:
    The highly flexible silicone has excellent sealing properties, increasing machine efficiency and reducing energy consumption.
  • More process reliability:
    Stress reduction, lower edge flutter and reduced sheet breaks ensure better-running systems.
  • Maintenance-friendly and resource-saving:
    Durable long-life material reduces sheet breaks, downtime and waste
  • Easy to install and remove:
    The simple installation can be optimised by the use of our CLOUTH DOCTOR CLEAN® systems. The slippery silicone ensures smooth removal.

Our variants for different requirements

CLOUTH®-SEAL WDS

Standard application
with dirt protection
and increased hot steam resistance

Hardness: 70° +/-5 SHORE A

CLOUTH®-SEAL CF

Standard application
with dirt protection
and increased heat resistance

Hardness: 90° +/-5 SHORE A

CLOUTH®-SEAL BT

Standard application
Hardness: 90° +/-5 SHORE A

Standard design:

  • Thickness mm (inch): 2.0 (0.08)
  • Width mm (inch): 51 (2)
  • Heat resistance: Up to max. 200°C
  • Design: End-to-end, individual length, blunted tip

CLOUTH®-SEAL

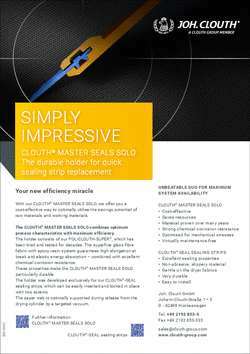

All information at a glance to download:
