As a specialist for keeping roller, roll and cylinder surfaces clean, our products are also increasingly used in the food industry. We offer a highly efficient solution, particularly for the starch processing industry. This can also be transferred in an adapted form to other areas of the food industry, e.g. separation systems.

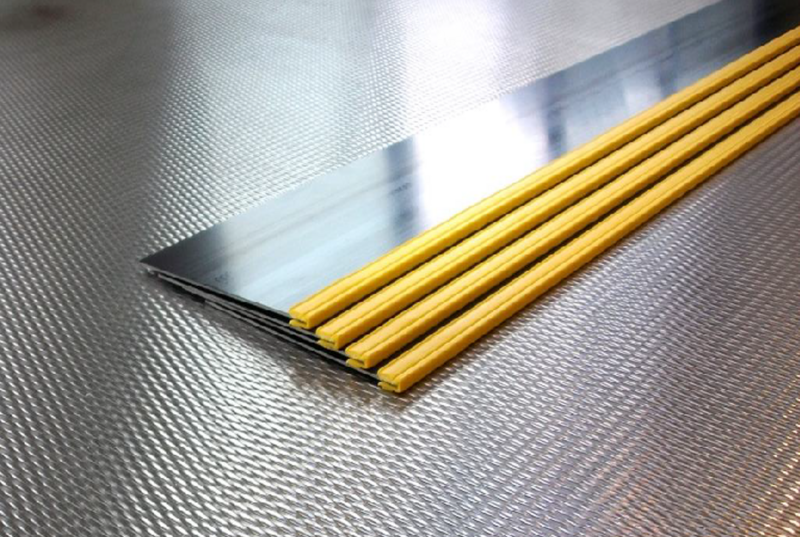

QR-BLADE Quick Replacement Blade System
This involves the use of a disposable doctor blade made of special extra-hard steel. Just like the yellow edge protection, this can be recycled in an environmentally friendly manner.
Material
Carbon steel C = 1,00 %, extra hard
Hardness approx. 52 – 55 HRC (approx. 523 – 570 HB)
Ausführung
- greatest possible system availability
- safe use
- no adjustment necessary
- special, extra-hard steel
- problem-free retrofitting
- sustainable
Your added value at a glance
- greatest possible system availability
- safe use
- no adjustment necessary
- special, extra-hard steel
- problem-free retrofitting
- sustainable
YOUR ADVANTAGES IN DETAIL
-

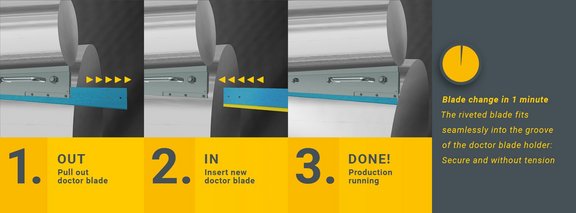

Greatest possible system availability
Maximum time saving when changing the doctor blade:
No loosening of screws necessary and no need for adjustment after changing the doctor blade. -
Safety
Doctor blade riveting is designed in line with the specially developed holder concept.
The doctor blade cannot fall out -
Tension-free doctoring
The doctor blade holder does not clamp the doctor blade. This allows for the thermal expansion of the doctor blade during operation.
No tension is created and the best doctoring results are guaranteed. -
Material
The doctor blade is made of special, extra-hard steel and is designed for long service life. -
Retrofitting
The existing doctor blade holder does not need to be replaced. With an adapter plate matched to the individual system, the use of the QR-Blade -
Sustainability
Doctor blade and wading protection are fully recyclable. -
Optimised production
Less off-spec products during or immediately after the doctor blade change, as the fine doctor blade immediately adapts perfectly to the surface.
